Two Post Car Lift | Clear Floor | 12,000lb Capacity | Quick Lift USA Inc.



Spec/Manual Downloads



Features:

  • 12,000lb Lifting Capacity

  • 72.5” Maximum Lifting Height Without Extension Adapters

  • 174”, 186”, or 198” Overall Height

  • 150.75” Overall Width with Motor

  • 109.75” Drive-Through Clearance

  • 123.5” Width Between Columns

  • 4.5” Minimum Pad Height

  • Clear Floor Design for an Unrestricted Workspace

  • 2 HP | 220V Single-Phase Electric/Hydraulic System

  • Dual Direct-Drive Hydraulic Cylinders

  • Four Long-Reach Symmetrical Three-Stage Arms for Flexible Vehicle Positioning

  • Single-Point Safety Release and Overhead Shut-Off Device

  • Oversized Door Pads Help Protect Vehicle Doors

  • Adjustable Screw Pads for Lifting-Point Height Adjustment

  • Includes 3” and 6” Extension Adapters

  • Heavy-Duty Saddle Adapters Included Standard

  • Self-Lubricating UHMW Polyethylene Sliders and Bronze Bushings

  • Automatic 2-Year Manufacturer Warranty on All Non-Wearable Parts

  • Local Installation (Phoenix-Metro) | $850 Flat! (See Installation Map for additional installation costs outside the Phoenix-Metro area.)

  • Free Local Delivery Within 25 Miles of Gilbert, AZ

  • Nationwide Shipping Available



*Lifts require a forklift, skid steer, or loader for unloading due to their size and weight*



Description:

The Quick Lift USA QL12KCF 12,000lb Clear Floor Two Post Lift brings heavy-duty lifting capability to professional shops and well-equipped home garages. Reinforced columns, long-reach arms, and a spacious lifting area accommodate a wide range of cars, SUVs, and trucks within the lift’s rated capacity and lifting-point requirements. Its 2 HP, 220V single-phase electric/hydraulic system powers dual direct-drive cylinders, while the clear-floor layout keeps the workspace open and accessible.



Superior Design & Versatility:

Four long-reach, symmetrical, three-stage arms provide flexible access to vehicle lifting points. Adjustable screw pads allow height adjustment at each contact point, while the included 3” and 6” extension adapters accommodate elevated lifting points. Heavy-duty saddle adapters come standard, providing another contact option for compatible vehicles. With 123.5” between the columns and 109.75” of drive-through clearance, the QL12KCF offers generous room for vehicle positioning. Three overall-height settings—174”, 186”, or 198”—allow installation to suit the available ceiling height. The overhead beam routes cables and hydraulic lines above the workspace, leaving the floor clear for tools and equipment.



Safety & Reliability:

A single-point safety release operates both column locks, while automatic arm restraints help secure the arms during lifting. The overhead shut-off device stops upward travel when contacted, and equalizer cables help keep the carriages moving together. Oversized door pads help protect vehicle doors during positioning and service. Installation requires fully cured, level, crack-free concrete with a minimum thickness of 6” and a minimum compressive strength of 3,500 psi.



Built to Last:

Reinforced columns and a direct-drive hydraulic system provide a sturdy foundation for routine vehicle maintenance and repair. Self-lubricating UHMW polyethylene sliders and bronze bushings support smooth carriage movement, while the gray-and-black finish gives the QL12KCF a clean, professional appearance. An automatic two-year manufacturer warranty covers all non-wearable parts, with no registration required.



Engineered for Professionals & Enthusiasts:

From personal vehicle projects to daily shop service, the QL12KCF combines 12,000lb lifting capacity with practical access and straightforward controls. Its long-reach arms, adjustable screw pads, extension adapters, and included heavy-duty saddle adapters offer flexible lifting-point contact options for compatible vehicles. The clear-floor design leaves room for rolling jacks, tool carts, and other service equipment.



Local Delivery & Installation:

Local Installation Available!

FREE Local Delivery Within 25 Miles of Gilbert, AZ.

Nationwide Shipping Available

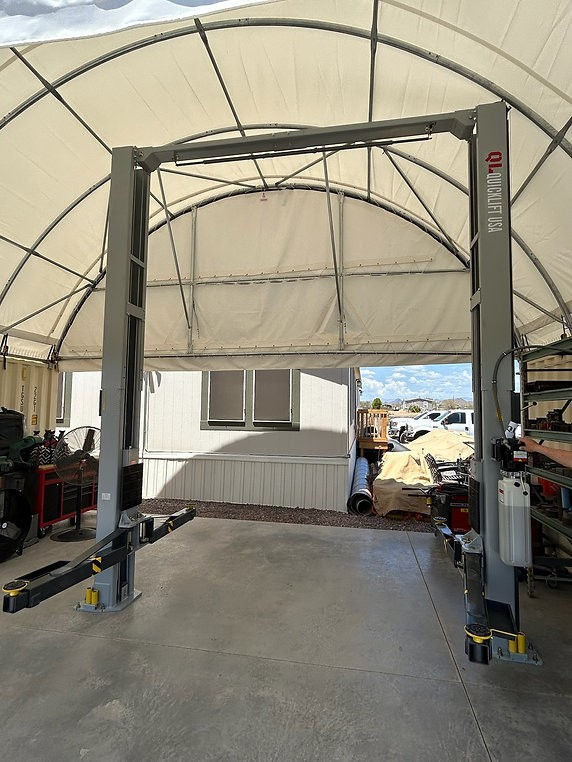

TWO POST CAR LIFT | CLEAR FLOOR | 12,000LB

SKU: QL12KCF
$4,699.99Price
