Triple Stack 4 Post | 9,000lb / 8,000lb Capacity | Quick Lift USA Inc.
Spec/Manual Downloads
Features:
- 9,000lb Lower Platform | 8,000lb Upper Platform
- Three-Vehicle Storage | Two Elevated Parking Platforms
- Four-Post Design | 168” Overall Height
- 100” Drive-Through Clearance
- 67” Lower Drive-Under Clearance | 71” Upper Drive-Under Clearance
- 213” Drive-On Runway Length
- 86” Drive-On Width | 19” Wide Steel Runways
- 47” Between Runways
- Hydraulic Lifting System | Cable-Synchronized Platforms
- Independent Platform Selection
- Mechanical Safety Locks | Pneumatic Lock Release
- Vehicle Wheel Stops | Drive-On Ramps
- 220V Power Supply | Compressed Air Required for Lock Release
- Free Local Delivery (Within 25 Miles of Gilbert, AZ)
- Local Installation | Contact Us for Pricing
- Nationwide Shipping
Lifts will always require a forklift, skid steer or loader due to their size and weight | Terminal Pick-up available!
Description:

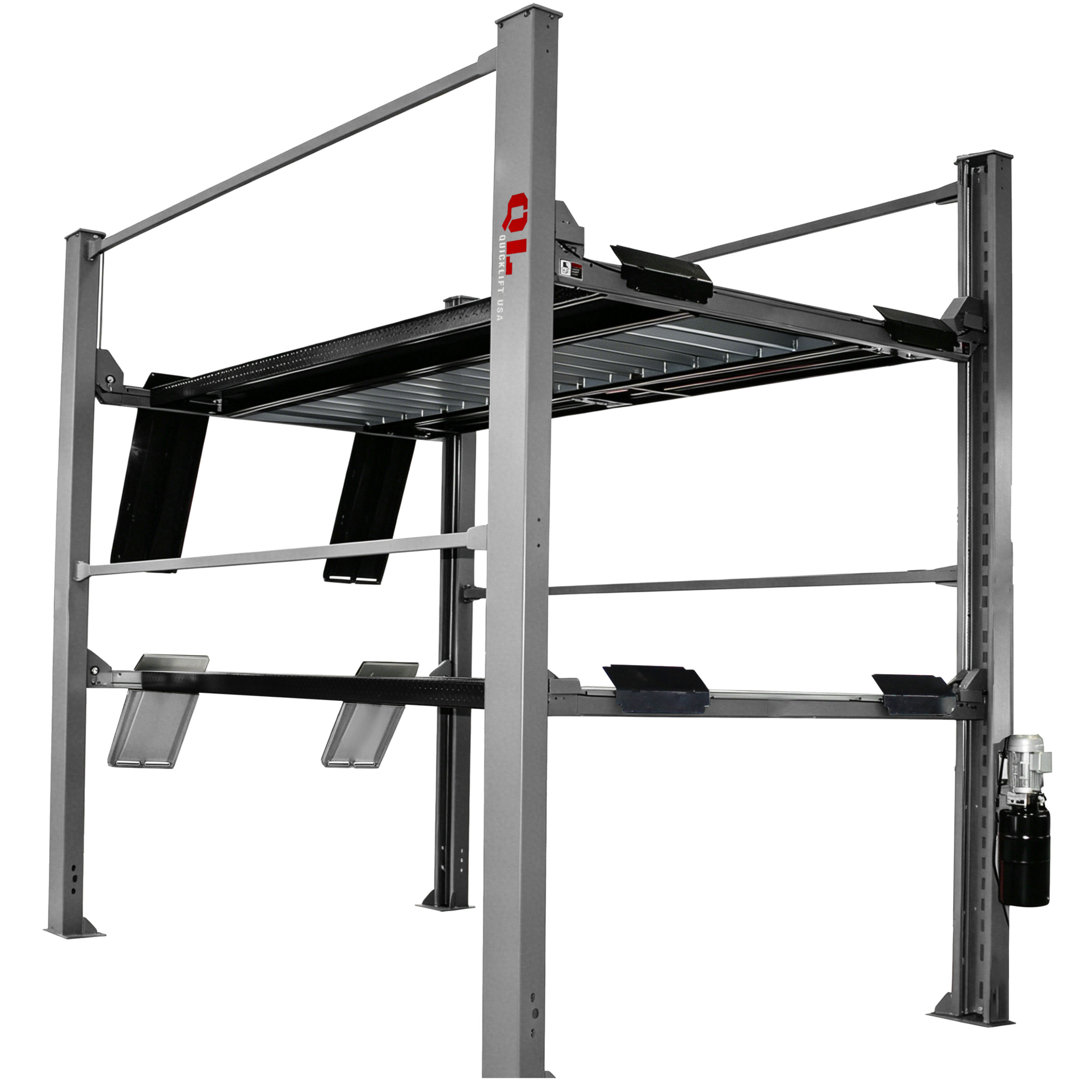

Meet Quick Lift USA’s Four Post Triple Stacker Car Lift | 9,000 / 8,000lb, model QL3STACK. With two elevated parking platforms and a third parking space at ground level, this lift helps you store three vehicles in one footprint. It’s built for collectors, garages and businesses looking to make better use of vertical space.
9,000 / 8,000lb Capacity:
The lower platform supports up to 9,000lb, while the upper platform supports up to 8,000lb. Each platform has its own load rating, giving you flexibility when arranging vehicles across the two elevated parking levels.
Three Levels of Vehicle Storage:
Two elevated platforms create room for a third vehicle beneath the lift. With 168” overall height, 67” lower drive-under clearance and 71” upper drive-under clearance, the QL3STACK makes vertical vehicle storage practical. Check vehicle heights, ceiling clearance and overhead obstructions before planning your layout.
Room to Drive On:
The QL3STACK features 213” drive-on runways, 19” individual runway width, 47” between runways and 100” drive-through clearance. Drive-on ramps help guide vehicles onto the platforms, while wheel stops help position them for parking.
Stable & Secure:
A hydraulic lifting system raises the platforms, with steel cables coordinating movement at the corners. Mechanical safety locks support the platforms at the locking positions, and pneumatic release allows the locks to disengage for lowering. Always lower each platform onto its locks before leaving a vehicle stored.
Independent Platform Selection:
The platform selector directs the hydraulic system to the upper or lower platform, allowing one platform to be operated at a time. The system uses 220V power, with a compressed-air connection required for the pneumatic lock release.
Built for Your Garage:
The four-post steel structure, drive-on platforms and dedicated parking levels provide a practical storage solution for vehicles that would otherwise take up separate floor spaces. Professional installation and anchoring are required; your installer will verify the slab, electrical supply and available overhead clearance.
Local Delivery & Installation:
FREE local delivery (within 25 miles of Gilbert, AZ) | Contact Us for delivery to outside areas
Local Installation | Contact Us for Pricing.
Nationwide Shipping Available
