4 Post Car Lift XL LUXE* | 9,000lb Capacity | Quick Lift USA
Spec/Manual Downloads
Features:
9,000lb Lifting Capacity
86.625” Maximum Lifting Height
81” Drive-Under Clearance on the Top Safety Lock
97.5” Overall Height
106.75” Overall Width Without Motor | 117.75” With Motor
85.0625” Drive-Through Clearance on the Lift
98.0625” Width Between Columns Beneath the Lift
185” Long × 20” Wide Diamond-Plate Steel Runways
1 HP | 110V Single-Phase Electric/Hydraulic System
Prewired with a Grounded Three-Prong Plug
Four-Point Mechanical Locking System with 11 Lock Positions
Single-Point Manual Safety Release
Secondary Cable Safety System
3/8” High-Strength Lifting Cables
Hydraulic Line Burst-Protection Valve
Aluminum Approach Ramps
Includes Four Drip Trays, Sliding Tool Tray & Full HD Caster Kit
Jacking Beams Available Separately | Hand & Pneumatic
Durable Gray-and-Black Finish
Automatic 2-Year Manufacturer Warranty on All Non-Wearable Parts
Local Installation Available in the Phoenix-Metro Area (View Installation Map)
Free Local Delivery Within 25 Miles of Gilbert, AZ
Nationwide Shipping Available
*Lifts require a forklift, skid steer, or loader for unloading due to their size and weight. Terminal pickup is available*
Description:

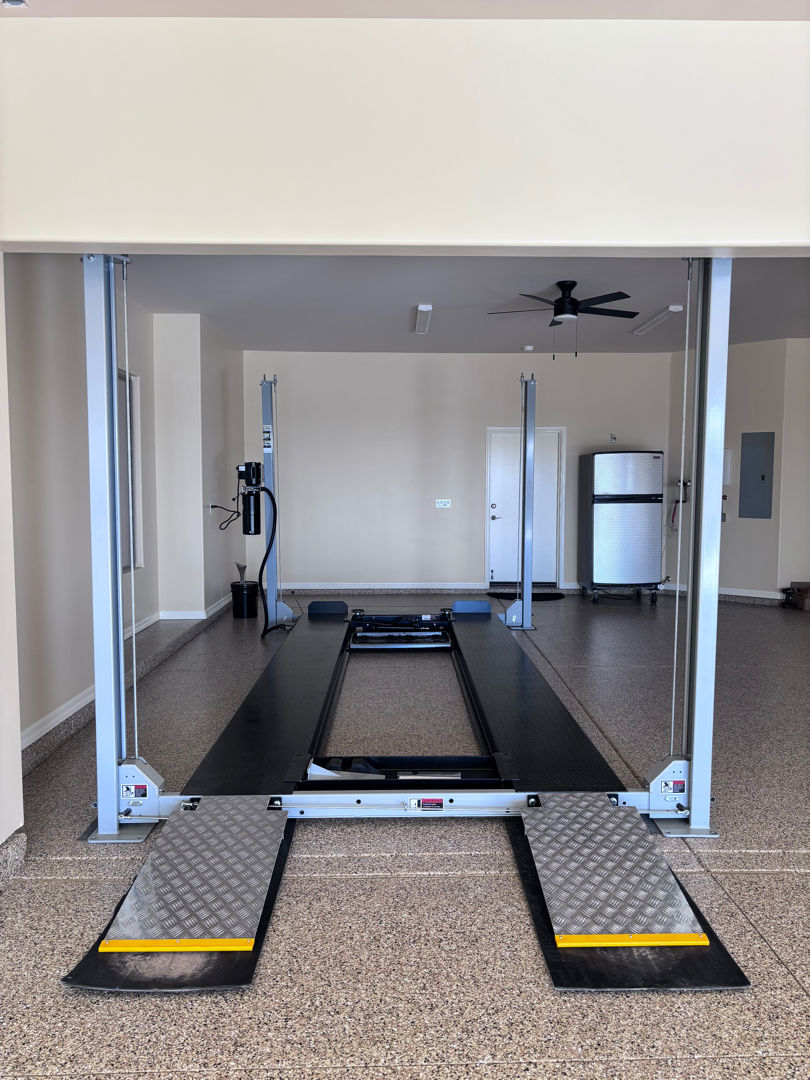

The Quick Lift USA QL4P9KXL-LUXE 9,000lb XL Four Post Car Lift provides elevated parking and access for compatible cars, SUVs and trucks. Its 185” runways, 86.625” maximum lifting height and included accessories make it a practical addition to home garages and professional shops. The 1 HP, 110V single-phase electric/hydraulic system comes prewired with a grounded three-prong plug.
Superior Design & Versatility:
Two diamond-plate steel runways measure 185” long × 20” wide, with 38” of clear space between them. Aluminum approach ramps provide access to the platform. The lift offers 85.0625” drive-through clearance on the runways and 98.0625” between the columns beneath the raised platform. Confirm vehicle weight, wheelbase, track width and overhead clearance before loading.
Safety & Reliability:
A four-point mechanical locking system provides 11 locking positions, while a secondary cable safety system adds protection if a lifting cable fails. A single-point manual release operates the safety locks, and a hydraulic burst-protection valve helps limit rapid lowering if a hydraulic line ruptures. Always lower the platform onto all four mechanical locks before working underneath or leaving a vehicle in storage.
Built to Last:
Diamond-plate steel runways, 3/8” lifting cables and high-density column slide blocks support dependable operation. The hydraulic power unit uses a steel reservoir and a 1 HP motor. An automatic two-year manufacturer warranty covers all non-wearable parts, with no registration required.
Engineered for Professionals & Enthusiasts:
The QL4P9KXL-LUXE includes four drip trays, a sliding tool tray and a full HD caster kit. The caster kit allows the unloaded lift to be repositioned; never move it with a vehicle on the runways. Optional hand-operated or pneumatic rolling jacking beams provide wheel-free access for compatible service applications. The lift provides 81” of drive-under clearance on the top safety lock. Check the height of both vehicles and the garage’s overhead clearance when planning stacked parking.
Local Delivery & Installation:
Local Installation Available! See the Installation Map for service-area information.
FREE Local Delivery Within 25 Miles of Gilbert, AZ.
Nationwide Shipping Available
